Quick Details

  • Condition: New
  • Type: Screw
  • Configuration: Portable
  • Power Source: Diesel
  • Lubrication Style: Oil-less
  • Mute: Yes
  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: Crownwell
  • Model Number: CW750
  • Voltage: 380v/3ph/50hz(or Customized)
  • Dimension(L*W*H): 4800x2000x2350
  • Weight: 5500
  • Certification: ISO
  • Warranty: One year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Color: yellow
  • Discharge Capacity: 22m3/min
  • Discharge Pressure: 8.6bar
  • Motor: Cummins Engine

Packaging & Delivery

Packaging Details standard
Delivery Time two weeks within

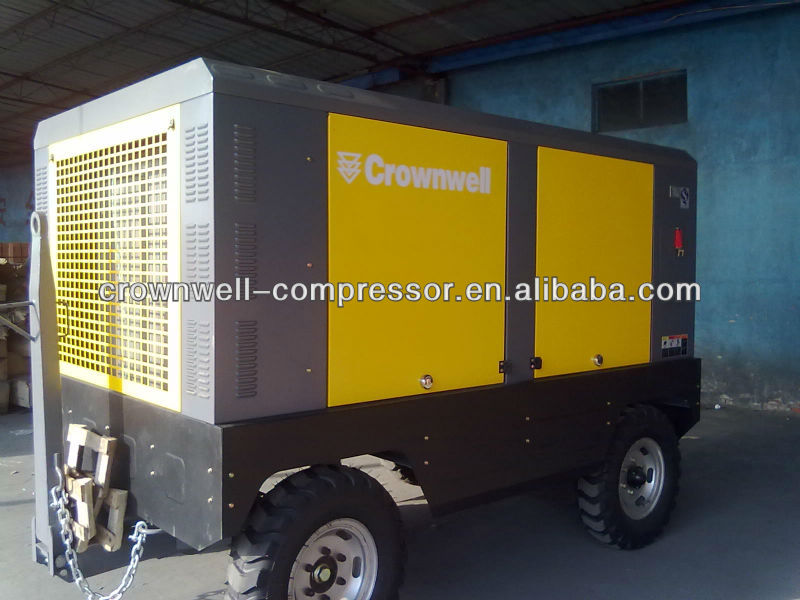

Crownwell Diesel Portable Air Compressor
Model CW250
(22m3/min, 8.6bar, Cummins Engine)
-We call "DRAGON"

Customer benefits
1)Easy operation – All controls are located on a single panel for quick access and smooth operation.


2)Easy maintenance – Easy to remove the side panels, front and rear baffle in seconds while self-supporting gas struts lift the hood in one piece. The result is fast service access to accelerate maintenance and reduce downtime.


3)High efficiency – The combination of an efficient Cummins engine and the high performance Crownwell compressor element guarantees outstanding efficiency and reduced wear.

4)High fuel automomy – All models are fitted with a stepless, fully automatic regulator. This constantly varies the engine speed according to air demand, reducing fuel consumption. The high capacity fuel tank allows the compressors to work a full shift without the need to refuel.

5)Low cost of ownership – The tough, impact-resistant canopy resists damage and corrosion, eliminating the time and cost of repair and repaint jobs.

 *Above are standard scope of supply. Engine brand can be customized.
ModelDischarge CapacityDischarge PressureEngine PowerEngine BrandOil CarryoverDimension:Weight
(m³/min)(Bar)(HP)(ppm)L×W×H(mm)(Kg)
CW2507880Yuchai≤63500x1600x20001300
CW450128150Yuchai4000x2080x23102480
CWH3008.514.5150Yuchai4000x2080x23102480
CWH3501013150Yuchai4000x2080x23102480
CWH45012.88-14.5180Yuchai4300x2100x22002800
CW600178186Yuchai4300x2100x22003000
CW750228.6240Cummins4600x1900x23503800
CWH600188-14.5240Cummins4600x1900x23503800
CWH750228-14.5340Yuchai4800x2000x23505500
CWHH7502221340Yuchai4800x2000x23505500



Electric portable air compressor
ModelDischarge CapacityDischarge PressureMotor PowerOil CarryoverDimension:Weight
(m³/min)(Bar)(KW)(ppm)L×W×H(mm)(Kg)
CW55EP10855≤54150x1450x19501500
CW75EP128754150x1450x19501800
CWH75EP914.5754150x1450x19501800
CW90EP168904150x1450x19502500
CWH90EP12.814.5904150x1450x19502500
CW110EP2081105100x1620x21803000
CW132EP2481325100x1820x21803000
CWH132EP17131325100x1820x21803000
CW160EP2781605110x1820x21803200
CWH160EP12.8131605110x1820x21803200
CWH185EP21131855100x1820x21803200
